Magic Button - ESP8266

Hey Science Enthusiasts! Today, we're diving into an exciting project using the ESP8266 module to make voice calls through Twilio's powerful API. This guide will walk you through setting up your ESP8266 to connect to WiFi and use Twilio to make calls at the press of a button. Inspired by the practical need to help an elderly relative who regularly misplaces their phone, this project is designed to simplify their life. With just a press of a button, their phone will ring, making it easy to find. Whether you're building a smart solution for a loved one or an emergency alert system, this guide has got you covered. Let's get started!

วัสดุที่คุณต้องใช้:

  • ESP8266 Module: The microcontroller that will drive our project.
  • USB to UART Bridge: To program the ESP8266.
  • Button: To trigger the call.
  • LED: To indicate call status.
  • เรซิสเตอร์:: For the LED (220ohm) and button (10k ohm).
  • Breadboard and Jumper Wires: For prototyping the circuit.
  • Twilio Account: You’ll need a registered account with Twilio to access their API.

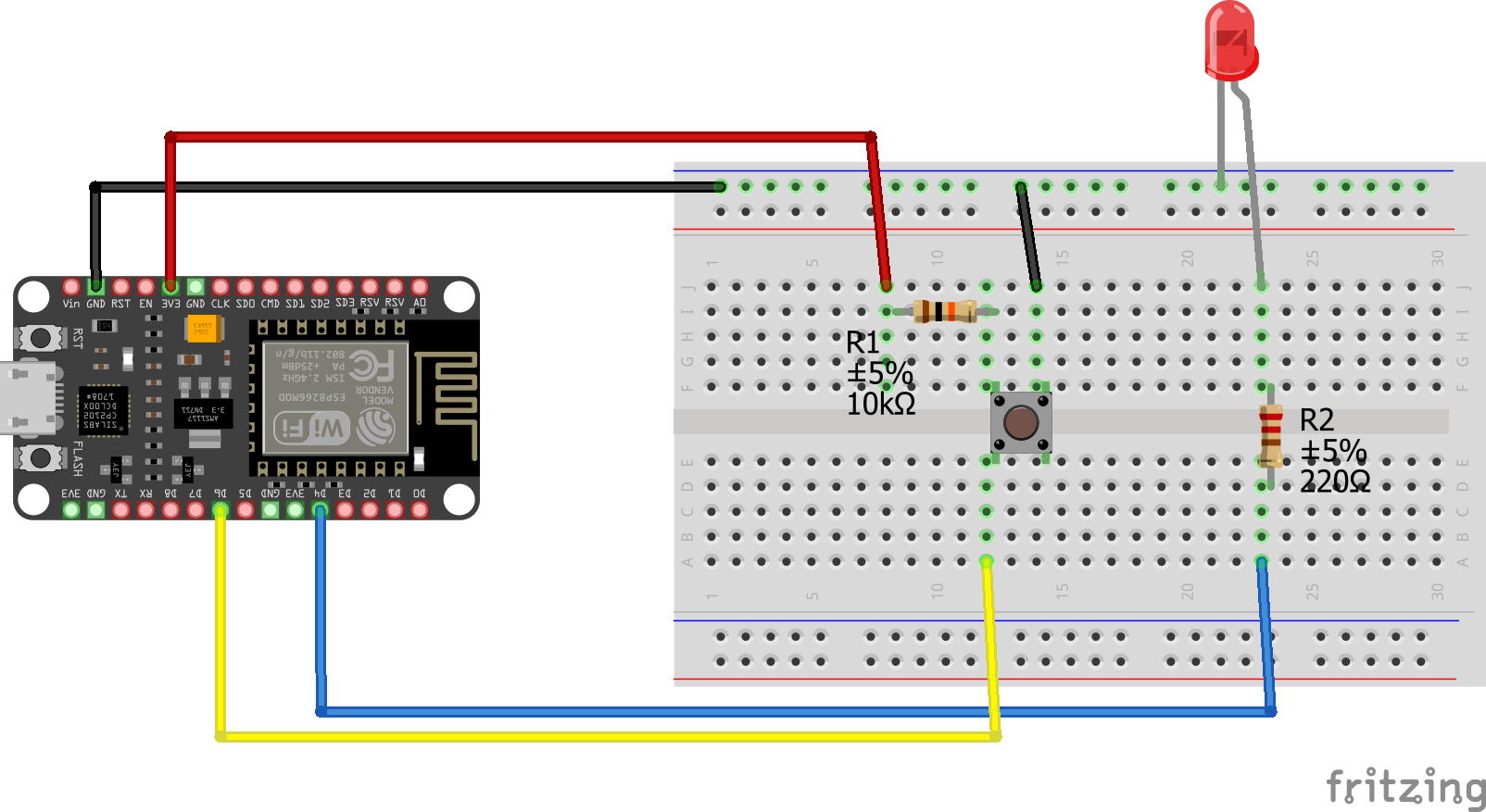

Step 1: Hardware Setup

Let’s start by connecting our components.

  • Connect the Button:
    • One side to GPIO D1 on the ESP8266.
    • The other side to Ground through a pull-down resistor.
  • Set Up the LED:
    • Anode (longer leg) to GPIO D4.
    • Cathode (shorter leg) to Ground through a current-limiting resistor.

Note: Double-check all connections to ensure they’re secure and correct to prevent any short circuits.

Step 2: Software Setup

Now, let’s set up our ESP8266 with the necessary code.

  • Install Arduino IDE:

    • Download and install the Arduino IDE if you haven’t already.

  • Configure the Arduino IDE:

    • Add the ESP8266 board to your Arduino IDE.
    • Install the WiFiClientSecure and base64 libraries via the Library Manager.

  • Programming the ESP8266:

    • Copy the provided sketch into your Arduino IDE.
    • Replace the ssid, password, accountSID, authToken, fromNumber, and toNumber with your actual Twilio and WiFi credentials.

  • Upload the Code:

    • Connect your ESP8266 to your computer via the USB to UART bridge.
    • Select the correct board and port in the Arduino IDE.
    • Upload the sketch.
Click here for Arduino Sketch

Step 3: Test Your Setup

Time to test our project and make a call!

  • Power Up Your ESP8266:

    • Use a USB cable or an appropriate external power source.

  • Activate the Call:

    • Press the button connected to D1.
    • The LED should light up indicating that the call is being made.
    • Check the serial monitor in Arduino IDE to see the call status and any messages from Twilio.
📞 Congratulations! Your ESP8266 Twilio Voice Caller is Ready! 📞

Troubleshooting Tips:

  • Not Connecting to WiFi? Check your SSID and password.
  • No Response from Twilio? Ensure your Twilio credentials are correct and that your Twilio account has necessary permissions and credits.
  • LED Not Lighting Up? Verify your LED connections and ensure your GPIO pin is correctly defined in your sketch

This practical project not only helps in finding a misplaced phone but also serves as a straightforward communication tool for emergencies. It can be easily adapted and expanded to fit more complex needs or integrated into broader home automation systems. Keep experimenting, keep learning, and enjoy making life simpler and safer with your new tech skills!
